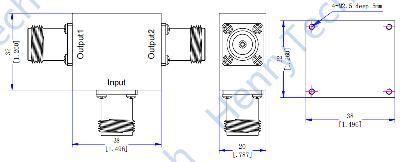

| HLT-20-8000-2N |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 20-8000MHz; Interface Type: N-Female; Insertion loss: ≤ 5.5dB; Input Standing Wave: Typ: 1.11/Max: 1.30; Output Standing Wave: Typ: 1.11/Max: 1.25; Isolation: Typ.Min.5.5dB; |
View details |

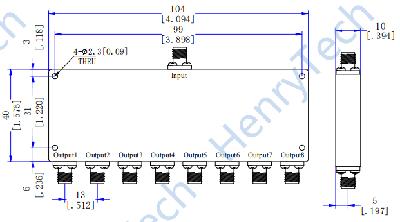

| HLT-20-8500-8S |
Cavity Power Divider |
 |
8 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 20-8500MHz; Interface Type: SMA Female; Insertion loss: ≤ 27dB; Input Standing Wave: Typ: 1.18/Max: 1.50; Output Standing Wave: Typ: 1.18/Max: 1.50; Isolation: Typ.Min.6dB; |
View details |

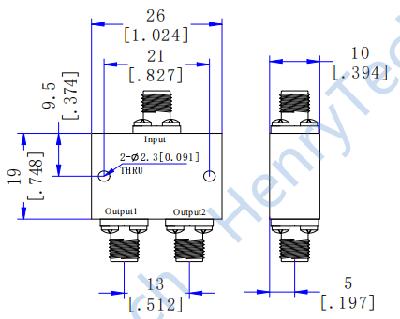

| HLT-0.02-6-2N |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 20-6000MHz; Interface Type: N-Female; Insertion loss: ≤ 1.5dB; Input Standing Wave: Typ: 1.50/Max: 2.00; Output Standing Wave: Typ: 1.20/Max: 1.50; Isolation: Typ.18dB/Min.6dB; |
View details |

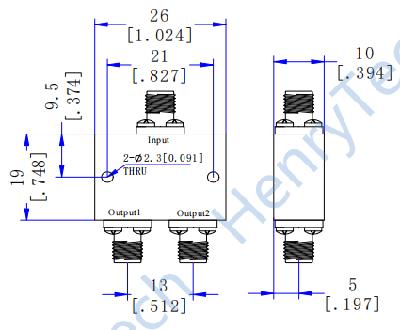

| HLT-20-6000-2N1 |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 20-6000MHz; Interface Type: N-Female; Insertion loss: ≤ 5.2dB; Input Standing Wave: Typ: 1.11/Max: 1.30; Output Standing Wave: Typ: 1.11/Max: 1.25; Isolation: Typ.Min.5.5dB; |
View details |

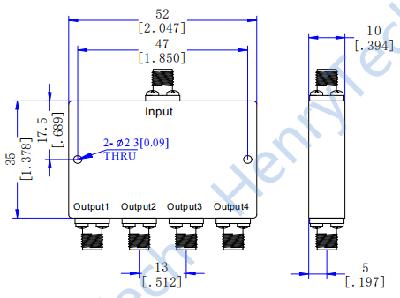

| HLT-20-3000-5S |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 20-3000MHz; Interface Type: SMA Female; Insertion loss: ≤ 8.0dB; Input Standing Wave: Max: 1.25; Output Standing Wave: Max: 1.25; Isolation: Typ.Min.14dB; |
View details |

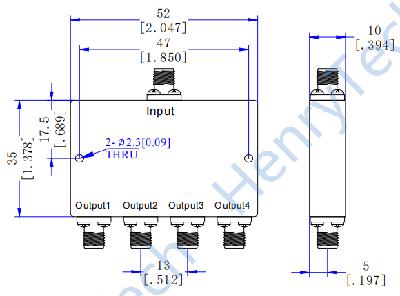

| HLT-20-3000-4S |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 20-3000MHz; Interface Type: SMA Female stainless steel; Insertion loss: ≤ 7.8dB; Input Standing Wave: Typ: 1.11/Max: 1.20; Output Standing Wave: Typ: 1.11/Max: 1.20; Isolation: Min.11.5dB; |
View details |
| HLT-0.01-3-2S |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 10-3000MHz; Interface Type: SMA Female stainless steel; Insertion loss: ≤ 2.0dB; Input Standing Wave: Max: 2.10; Output Standing Wave: Max: 1.60; Isolation: Min.9dB; |
View details |
| HLT-20-50-2Q |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 20000-50000MHz; Interface Type: 2.4 Female stainless steel; Insertion loss: ≤ 1.5dB; Input Standing Wave: Typ: 1.30/Max: 1.70; Output Standing Wave: Typ: 1.30/Max: 1.70; Isolation: Typ.22dB/Min.15dB; |
View details |
| HLT-18-50-2V |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 18000-50000MHz; Interface Type: 2.4 Female stainless steel; Insertion loss: ≤ 1.9dB; Input Standing Wave: Typ: 1.28/Max: 1.80; Output Standing Wave: Typ: 1.26/Max: 1.80; Isolation: Typ.22dB/Min.14dB; |
View details |

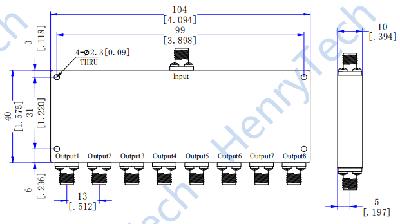

| HLT-18-40-8K |
Cavity Power Divider |
 |
8 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 18000-40000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 3.2dB; Input Standing Wave: Typ: 1.38/Max: 1.7; Output Standing Wave: Typ: 1.26/Max: 1.60; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-18-40-4K |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 18000-40000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 1.6dB; Input Standing Wave: Typ: 1.28/Max: 1.50; Output Standing Wave: Typ: 1.28/Max: 1.50; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-10-40-8K |
Cavity Power Divider |
 |
8 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 10000-40000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 3.5dB; Input Standing Wave: Typ: 1.38/Max: 1.7; Output Standing Wave: Typ: 1.26/Max: 1.60; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-18-40-2K |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 18000-40000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 1.0dB; Input Standing Wave: Typ: 1.28/Max: 1.50; Output Standing Wave: Typ: 1.26/Max: 1.50; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-18-26.5-2K |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 18000-26500MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 0.6dB; Input Standing Wave: Typ: 1.28/Max: 1.50; Output Standing Wave: Typ: 1.26/Max: 1.50; Isolation: Typ.22dB/Min.18dB; |
View details |
| HLT-18-26.5-2S |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 18000-26500MHz; Interface Type: SMA Female stainless steel; Insertion loss: ≤ 0.6dB; Input Standing Wave: Typ: 1.28/Max: 1.50; Output Standing Wave: Typ: 1.26/Max: 1.50; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-18-26.5-4S |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 18000-26500MHz; Interface Type: SMA Female stainless steel; Insertion loss: ≤ 1.0dB; Input Standing Wave: Typ: 1.28/Max: 1.50; Output Standing Wave: Typ: 1.26/Max: 1.50; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-18-26.5-8K |
Cavity Power Divider |
 |
8 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 18000-26500MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 1.6dB; Input Standing Wave: Typ: 1.38/Max: 1.6; Output Standing Wave: Typ: 1.26/Max: 1.50; Isolation: Typ.24dB/Min.16dB; |
View details |
| HLT-8-26.5-4S |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 8000-26500MHz; Interface Type: SMA Female stainless steel; Insertion loss: ≤ 1.5dB; Input Standing Wave: Typ: 1.28/Max: 1.55; Output Standing Wave: Typ: 1.26/Max: 1.50; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-6-40-8K |
Cavity Power Divider |
 |
8 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 6000-40000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 3.2dB; Input Standing Wave: Typ: 1.38/Max: 2.20; Output Standing Wave: Typ: 1.26/Max: 1.60; Isolation: Typ.22dB / Min.15dB; |
View details |
| HLT-6-40-4K |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 6000-40000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 2.0dB; Input Standing Wave: Typ: 1.32/Max: 2.0; Output Standing Wave: Typ: 1.24/Max: 1.60; Isolation: Typ.22dB/Min.15dB; |
