| HLT-6-40-2K |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 6000-40000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 1.2dB; Input Standing Wave: Typ: 1.28/Max: 1.60; Output Standing Wave: Typ: 1.28/Max: 1.50; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-6-26.5-8S |
Cavity Power Divider |
 |
8 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 6000-25600MHz; Interface Type: SMA Female; Insertion loss: ≤ 1.8dB; Input Standing Wave: Typ: 1.38/Max: 1.85; Output Standing Wave: Typ: 1.26/Max: 1.70; Isolation: Typ.24dB/Min.16dB; |
View details |
| HLT-6-26.5-4S |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 6000-26500MHz; Interface Type: SMA Female stainless steel; Insertion loss: ≤ 2.0dB; Input Standing Wave: Typ: 1.28/Max: 1.70; Output Standing Wave: Typ: 1.26/Max: 1.60; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-6-26.5-4K |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 6000-26500MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 1.9dB; Input Standing Wave: Typ: 1.28/Max: 1.60; Output Standing Wave: Typ: 1.26/Max: 1.60; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-6-26.5-2S |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 6000-26500MHz; Interface Type: SMA Female stainless steel; Insertion loss: ≤ 0.6dB; Input Standing Wave: Typ: 1.28/Max: 1.65; Output Standing Wave: Typ: 1.26/Max: 1.50; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-4-40-2K |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 4000-40000MHz; Interface Type: 2.92 Female; Insertion loss: ≤ 1.5dB; Input Standing Wave: Typ: 1.16/Max: 1.50; Output Standing Wave: Typ: 1.12/Max: 1.50; Isolation: Typ.22dB/Min.17dB; |
View details |

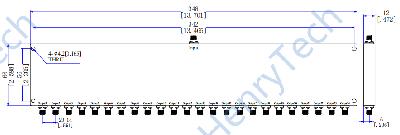

| HLT-3-6000-24S |
Cavity Power Divider |
 |
24 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 3-6000MHz; Interface Type: SMA Female; Insertion loss: ≤ 35dB; Input Standing Wave: Typ.1.18/Max: 1.25; Output Standing Wave: Typ: Typ.1.16/Max: 1.25; Isolation: Min.25dB; |
View details |
| HLT-1-1000-2S |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 1-1000MHz; Interface Type: SMA Female; Insertion loss: ≤ 1.0dB; Input Standing Wave: Typ: 1.15/Max: 1.40; Output Standing Wave: Typ: 1.12/Max: 1.40; Isolation: Typ.26dB/Min.20dB; |
View details |
| HLT-1-1000-2N |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 1-1000MHz; Interface Type: N-Female; Insertion loss: ≤ 1.2dB; Input Standing Wave: Typ: 1.15/Max: 1.40; Output Standing Wave: Typ: 1.12/Max: 1.40; Isolation: Typ.26dB/Min.18dB; |
View details |
| HLT-1-50-16S |
Cavity Power Divider |
 |
16 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 1-50MHz; Interface Type: SMA Female; Insertion loss: ≤ 2.4dB; Input Standing Wave: Max: 1.50; Output Standing Wave: Typ: Max: 1.50; Isolation: Typ.26dB/Min.18dB; |
View details |
| HLT-1-30-8BNC |
Cavity Power Divider |
 |
8 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 1-30MHz; Interface Type: BNC-Female; Insertion loss: ≤ 3.0dB; Input Standing Wave: Typ: 1.18/Max: 1.50; Output Standing Wave: Typ: 1.18/Max: 1.50; Isolation: Typ.32dB/Min.20dB; |
View details |
| HLT-1-30-2S |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 1-30MHz; Interface Type: SMA Female; Insertion loss: ≤ 0.5dB; Input Standing Wave: Typ: 1.22/Max: 1.35; Output Standing Wave: Typ: 1.13/Max: 1.35; Isolation: Typ.30dB/Min.20dB; |
View details |
| HLT-1-30-2N |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 1-30MHz; Interface Type: N-Female; Insertion loss: ≤ 0.6dB; Input Standing Wave: Typ: 1.15/Max: 1.35; Output Standing Wave: Typ: 1.15/Max: 1.35; Isolation: Typ.26dB/Min.20dB; |
View details |
| HLT-1.5-30-8S |
Cavity Power Divider |
 |
8 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 1.5-30MHz; Interface Type: SMA Female; Insertion loss: ≤ 1.6dB; Input Standing Wave: Typ: 1.4/Max: 1.80; Output Standing Wave: Typ: 1.4/Max: 1.80; Isolation: Typ.26dB/Min.18dB; |
View details |
| HLT-1.5-30-4S |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 1.5-30MHz; Interface Type: SMA Female stainless steel; Insertion loss: ≤ 0.6dB; Input Standing Wave: Typ: 1.15/Max: 1.25; Output Standing Wave: Typ: 1.18/Max: 1.40; Isolation: Typ.26dB/Min.20dB; |
View details |
| HLT-0.6-40-4K |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 600-40000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 5.0dB; Input Standing Wave: Typ: 1.28/Max: 1.70; Output Standing Wave: Typ: 1.26/Max: 1.60; Isolation: Min.16dB; |
View details |
| HLT-0.6-12-2S |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 600-12000MHz; Interface Type: SMA Female; Insertion loss: ≤ 1.0dB; Input Standing Wave: Typ: 1.26/Max: 1.40; Output Standing Wave: Typ: 1.18/Max: 1.30; Isolation: Typ.24dB/Min.20dB; |
View details |
| HLT-0.6-8.4-4S |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 600-8400MHz; Interface Type: SMA Female stainless steel; Insertion loss: ≤ 2.2dB; Input Standing Wave: Typ: 1.18/Max: 1.35; Output Standing Wave: Typ: 1.12/Max: 1.25; Isolation: Typ.26dB/Min.18dB; |
View details |
| HLT-0.5-40-4K |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 500-40000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 7.5dB; Input Standing Wave: Typ: 1.19/Max: 1.70; Output Standing Wave: Typ: 1.26/Max: 1.70; Isolation: Typ.22dB/Min.14dB; |
View details |
| HLT-0.5-28-4K |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 500-28000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 4.5dB; Input Standing Wave: Typ: 1.28/Max: 1.70; Output Standing Wave: Typ: 1.26/Max: 1.60; Isolation: Typ.16dB/Min.11dB; |
