| Product model |
Alternative model |
Product images |
Product description |
View details |

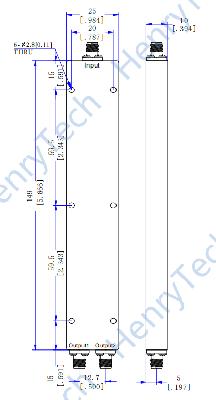

| HLT-0.5-28-2K |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 500-28000MHz; Interface Type: 2.92 Female stainless steel; Insertion loss: ≤ 2.8dB; Input Standing Wave: Typ: 1.28/Max: 1.50; Output Standing Wave: Typ: 1.28/Max: 1.50; Isolation: Typ.26dB/Min.16dB; |
View details |

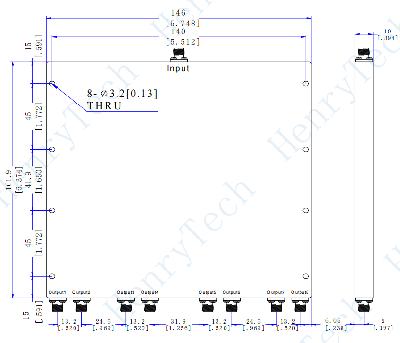

| HLT-0.5-26.5-8S |
Cavity Power Divider |
 |
8 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 500-26500MHz; Interface Type: SMA Female stainless steel; Insertion loss: ≤ 6.5dB; Input Standing Wave: Typ: 1.4/Max: 1.70; Output Standing Wave: Typ: 1.25/Max: 1.60; Isolation: Typ.22dB/Min.16dB; |
View details |
| HLT-0.5-26.5-4S |
Cavity Power Divider |
 |
4 Ways Microstrip Power Splitter; Impedance 50Ω; Frequency Range: 500-26500MHz; Interface Type: SMA Female; Insertion loss: ≤ 5.2dB; Input Standing Wave: Typ: 1.28/Max: 1.6; Output Standing Wave: Typ: 1.28/Max: 1.6; Isolation: Typ.26dB/Min.16dB; |
View details |

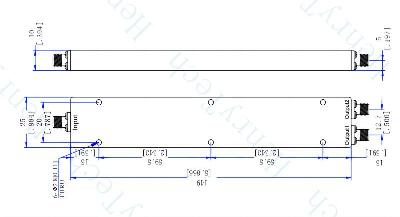

| HLT-0.5-26.5-2S |
Cavity Power Divider |
 |
2 Ways Microstrip Power Splitter;
Impedance 50Ω;
Frequency Range: 500-26500MHz;
Interface Type: SMA Female stainless steel;
Insertion loss: ≤ 2.4dB;
Input Standing Wave: Typ: 1.28/Max: 1.55;
Output Standing Wave: Typ: 1.28/Max: 1.50;
Isolation: Typ.26dB/Min.16dB; |
View details |
